Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: ZNEN
  • Model Number: ZN50QT-22
  • Engine Capacity: 49.46ml
  • Engine: BN139QMB
  • Certification: EEC, EPA, DOT
  • Wheel Material: Rubber
  • Body Material: ABS/PP plastic
  • Max Speed: 45km/h
  • Tank Capacity: 5.5L
  • Tire Size: 120/70-12 120/70-12
  • Color: multi-color
  • Brake: F: Hand R:hand
  • Size: 1825*680*1145mm
  • Brake Mode(front wheel/rear wheel): Disc/Drum
  • Motorcycle type: Two-wheeled motorcycle

Packaging & Delivery

Packaging Details Carton packing with iron stand for CBU or SKD, engine package of CKD order use carton packing and be separated to the body part. Body parts of CKD are packaged with carton or with plywood box one unit by one package. We also could accept the bulk parts packing.
Delivery Time 30days-35days

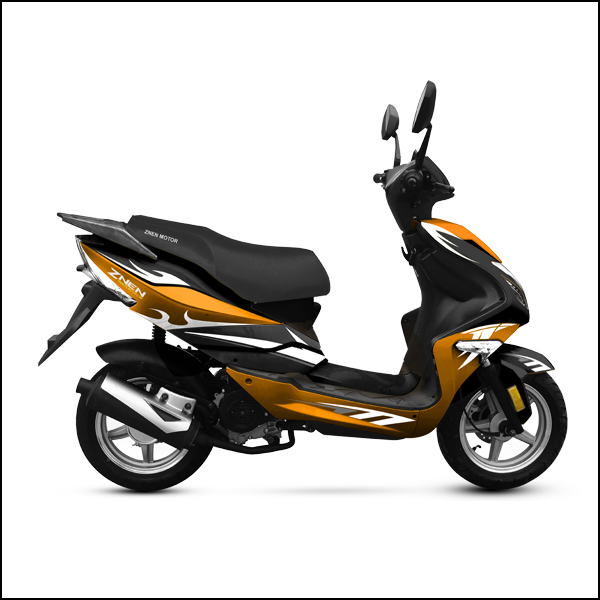

    R8-ZNEN Popular Sport Scooter 50CC china scooter 125cc China Cheap 150cc Scooter

Specification

Drive system

Belt drive

Front and rear shock

Front hydraulic rear spring shock

Electric and speedmeter

Eight level direct current , 12V7A battery,speedmeter(speed,mileage,fuel tank capacity)

Lighting system

Front headlamp,front winker, rear tail light , front position lamp

Exhaust system

Mute exhaust

Switch control system

Function left and right swtich

Cylinder diameter

39mm

Piston stroke

41.4

Battery type

12V7A

Max power and rotate speed

2.2KW(3.00HP)/7500rpm

Max torque and rotate speed

3.01/5000(N.m/rpm)

Minimum ground clearance(mm)

115

Compression ratio

10.2:1

Unladen mass(kg)

92

Load capacity(kg)

150

Economic oil consumption

2.0

Climbing capacity

Angle: 30 degrees

Minimum turning radius

1750MM

Speed change

V type belt stepless speed change











1,Selling points:



1,It can match multicolor and stickers



2,we can do 125C power, also do we can do  50CC and 150CC models.



3,Front and rear vacuum tire :durable,fasten, balanced ,and beautiful. the tire is wear-resisting and aiti-explosion.



4,Disc brake has high safety performance and has no noise



5,The motorcycle can install rear box and rear carrier





2,Color schemes of the new product:







Red









Blue







Yellow

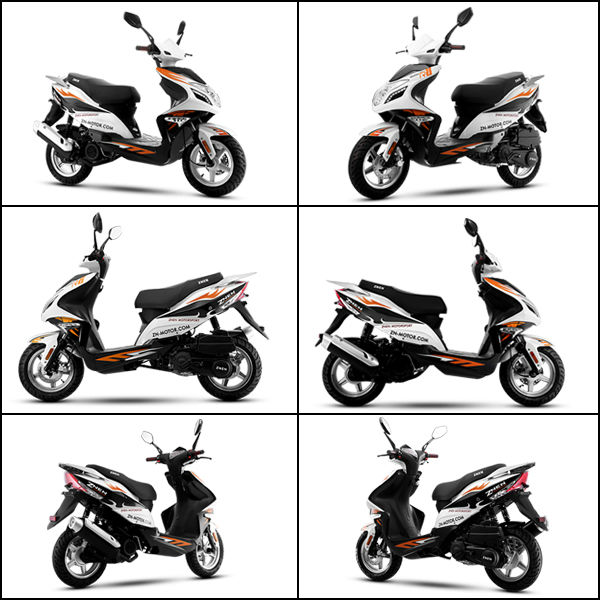

3,Multi-angle product:











4, Package information:



Package information

Gross weight(KG)

107KG( SKD iron package )

Net weight(KG)

89KG( SKD iron package )

Packing mode/quantity

CBU iron package 50pcs (40*HQ)

CBU full carton package 50pcs (40*HQ)

SKD iron package 75pcs (40*HQ)

Package size(mm)

CBU iron package 1900*580*1220

CBU full carton package 1900*580*1220

SKD iron package 1900*580*860



5,Exhibition picture of previous years







6,Our workshop





7,Our plant and Product certificate





Our factory has been specializing in producing scooters, e-scooters,motorcycles and tricycles for more than 20 years. We can do OEM. We can produce bike as your requirement, including scooters and e-scooters,street bikes,racing bikes,cub bikes,tricycles etc







THE LIST OF QUICK-WEAR PARTS





1 cover of follower parts: cover light,cover meter,fender,wind screen,body,tool case



2 light: head light,tail light and turning light



3 mirror





OUR SERVICE







1.We'll response to your inquiry in 24hours.



2.Our company's trade manager is almost online 24 hours.Please feel free to contact us if you  have any questions.



3.Our company have flexible production schedule to meet the client's schedule.



4.We'll offer the 1% quick-wear part for free.
